Widespan Gravity Flow Wire Shelf Assembly

Widespan Gravity Flow Wire Shelf Assembly

Product Details

  • Available 48W and 60W in widespan and multi-function width
  • Beams are low profile to maximize merchandising vertical space
  • Wire powder coated shelf with 1″ wire spacing provides slick durable finish. Available for flat or gravity feed levels
  • Available 3″ and 6″ high fronts to provide a stop and 3H dividers to create lanes for merchandise
  • Rear beam is installed higher to create gravity feel level. See chart for offset and angle by depth



How to Order

  • Order Widespan Uprites separately 30, 36, or 48 deep in desired height (two required per individual section run and one additional for add-on sections)
  • Order two Widespan or Multifunction Low Profile Beams per desired gravity flow or flat level. A minimum of two beam levels is required per section. Required beam levels can include a combination of Gravity Flow levels and flat levels, A beam must be installed within 6″ of the floor and maximum spacing between beams is 48″.
  • Order one gravity feed grid shelf for each gravity flow level. (See chart offset and respective angle)
  • Order one flat grid shelf for each desired flat level
  • Order five Low Profile Gravity Supports or five Low Profile Flat Shelf Supports per level
  • Order desired number of 3″H or 6″H Widespan or Multifunction Gravity Flow Frontss
  • Order desired numer of 3″H Widespan Dividers



System Depth Offset (Inches) Downslant Angle (deg.)
30 6 11.5
30 8 15.2
36 6 9.5
36 8 12.7
48 8 9.5
48 10 11.9

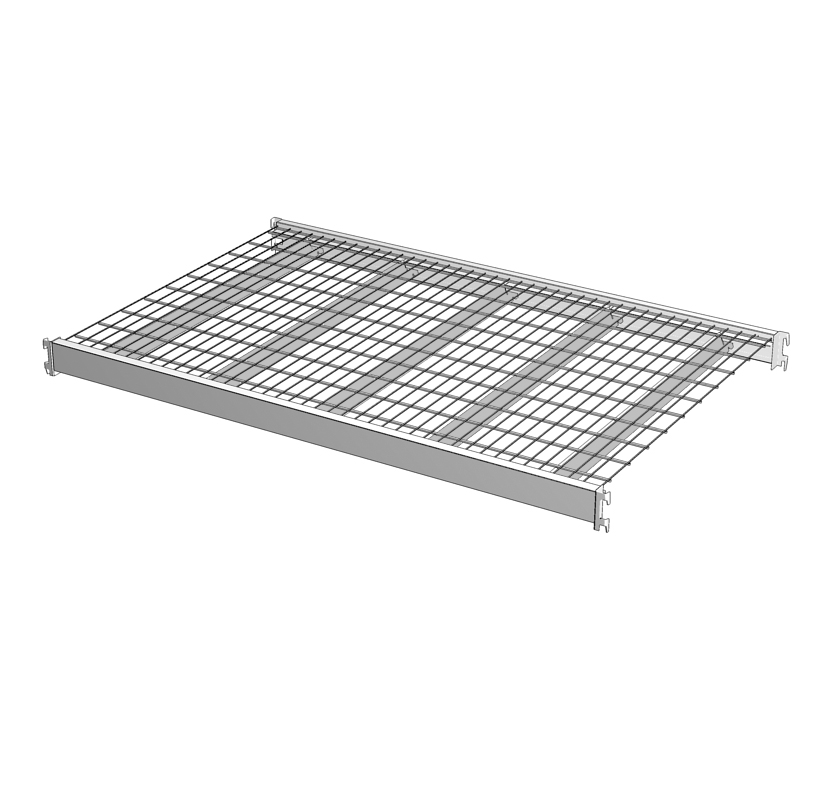

Widespan Gravity Flow Wire Shelf Assembly - Flat

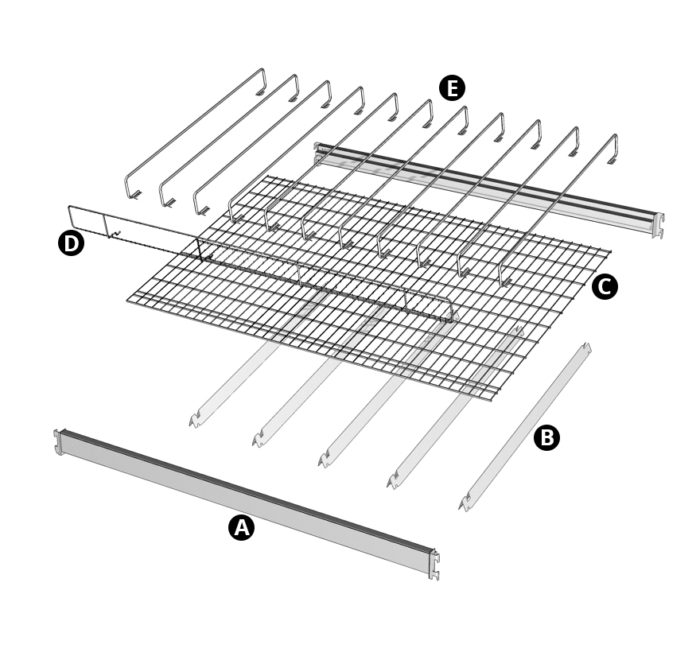

COMPONENTS (ORDER SEPARATELY):

A – Widespan / Multi-Function Low Profile Gravity Flow/Flat Beam
B – Widespan Low Profile Shelf Support
C – Widespan / Multi-Function Gravity/Flat Wire Shelf
D – Widespan / Multi-Function Gravity Flow Fronts
E – Widespan Dividers

Widespan/Multi-Function Low Profile Gravity Flow/Flat Beam

Product Details

  • Available Widespan or Multi-Function style
  • 2 1/2H profile
  • Accepts gravity flow or flat shelf supports/shelves
  • 600lb capacity
  • Same beam used for flat or gravity flow application
View product details

Product Options and Numbers

Example Part #:   WS   LB   48   PK4   PLT



Beam Type: WS (Widespan), MF (Multi-Function)

Low Profile Beam: LB

Beam Width:  48”, 60”

Unit of Measure: PK4

Standard Finish:  PLT, Optional Catalog Colors

Suffix Key
PLT – Platinum
PK4 – 4-Pack

Widespan Low Profile Shelf Support

Product Details

  • Available Flat or Gravity Feed
  • Five (5) reqiured per beam level



View product details

Product Options and Numbers

Example Part #:   WS   G   SS   L   30   6   PK5   PLT



System: WS (Widespan)

Flat or Gravity: Omit (Flat), G (gravity)

Shelf Support: SS

Low Profile: L

Widespan Depth: 30″, 36″, 48″

Beam Offset: 6 or 8 (30D), 6 or 8 (36D), 8 or 10 (48D), Omit for Flat

Unit of Measure: PK5

Standard Finish:  PLT, Optional Catalog Colors

Suffix Key
PLT – Platinum
PK5 – 5-Pack

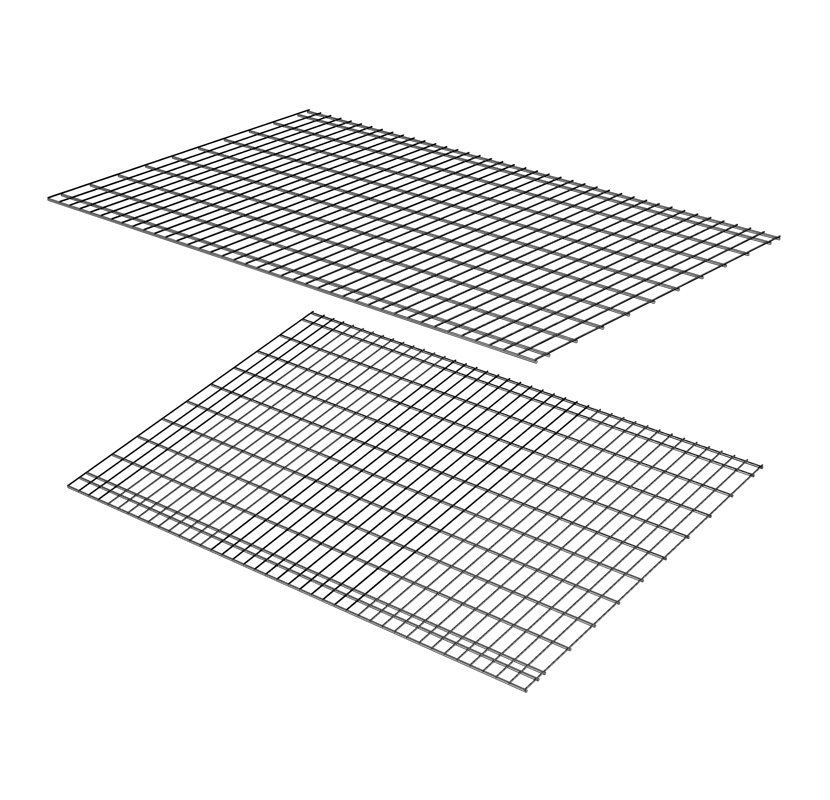

Widespan/Multi-Function Gravity/Flat Wire Shelf

Product Details

  • Available Widespan or Multifunction style
  • Available Flat or Gravity Feed
View product details

Product Options and Numbers

Example Part #:   WS   GW   30   48   1EA



Beam Type: WS (Widespan), MF (Multi-Function) style

Flat or Gravity: W (flat), GW (gravity)

Widespan Depth:  30″, 36″, 48”

Section Width: 48″, 60″

Grid Spacing: 1″

Unit of Measure: EA

Standard Finish:  PLT, Optional Catalog Colors

>

Suffix Key
PLT – Platinum
EA – Each

Widespan/Multi-Function Gravity Flow Fronts

Product Details

  • Provides product stop for Gravity Feed
  • 3” and 6” heights
  • Select Front size taller than displayed product’s center of gravity
View product details

Product Options and Numbers

Example Part #:   WSGFF   5   3   PK6   PLT



System: WS (Widespan), MF (Multi-Function)

Gravity Feed Front: GFF

Section Width: 4′, 5′

Front Height: 3″, 6″

Unit of Measure: PK6

Standard Finish: PLT, Optional Catalog Colors

Suffix Key
PLT – Platinum
PK6 – 6 Pack

Widespan Dividers

Product Details

  • Creates lanes for Gravity Flow wire shelf levels
  • Tension attachment to Gravity Wire Shelf
  • 3″ High
View product details

Product Options and Numbers

Example Part #:   WSGFD   48   PK25   PLT



Widespan Gravity Feed Divider: WSGFD

Widespan Depth: 30″, 36″, 48

Unit of Measure: PK25

Standard Finish: PLT, Optional Catalog Colors

Suffix Key
PK25 – 25 Pack
PLT – Platinum
